The following settings are provided “as is” and have been tested with Anynode version 4.14.15. We cannot guarantee that this configuration will not affect other features.
Anynode adjustments:
Before making any configuration changes to Anynode, we strongly recommend that you back up the configuration (Configuration Mode > Configuration -> Export).

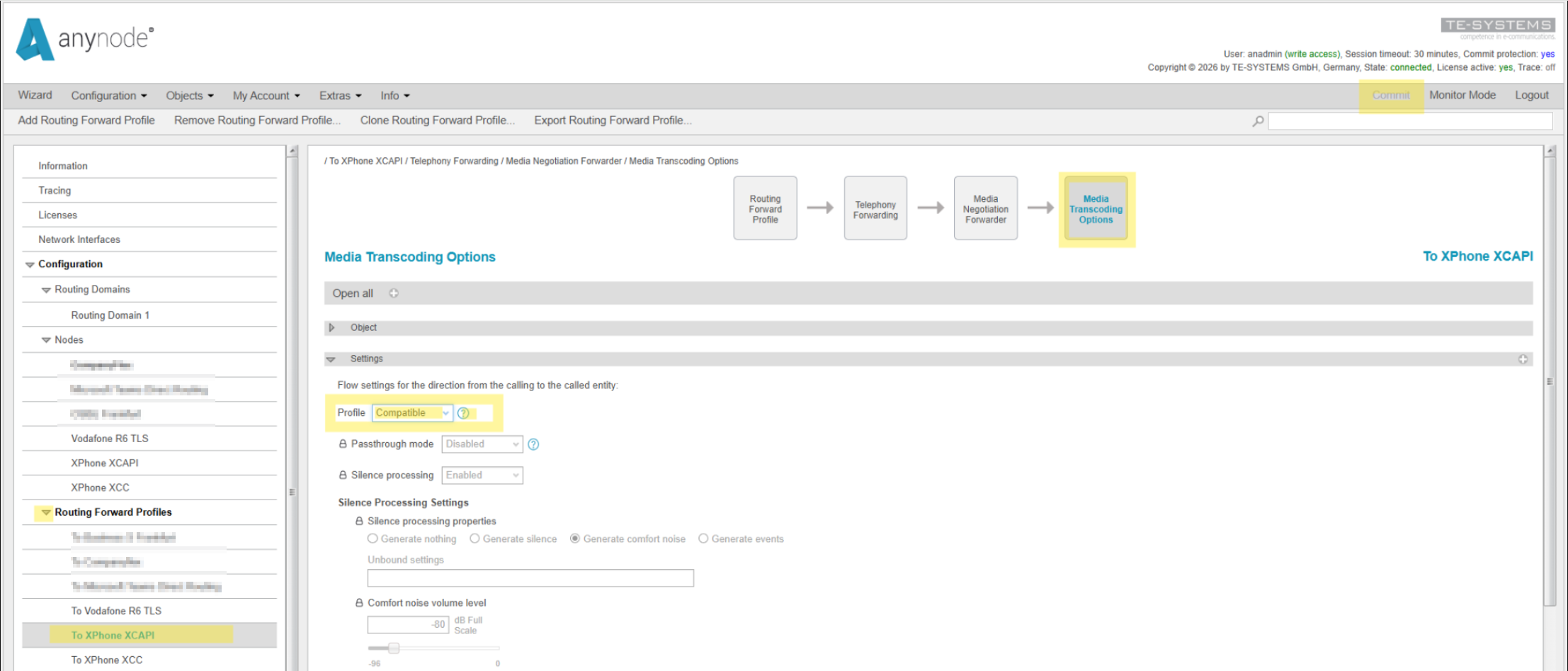

First, open the Routing Forward Profile for XCAPI. Go to Media Transcoding Options and open Settings. Set the Profile to “Compatible”.
Save the settings by clicking Commit.

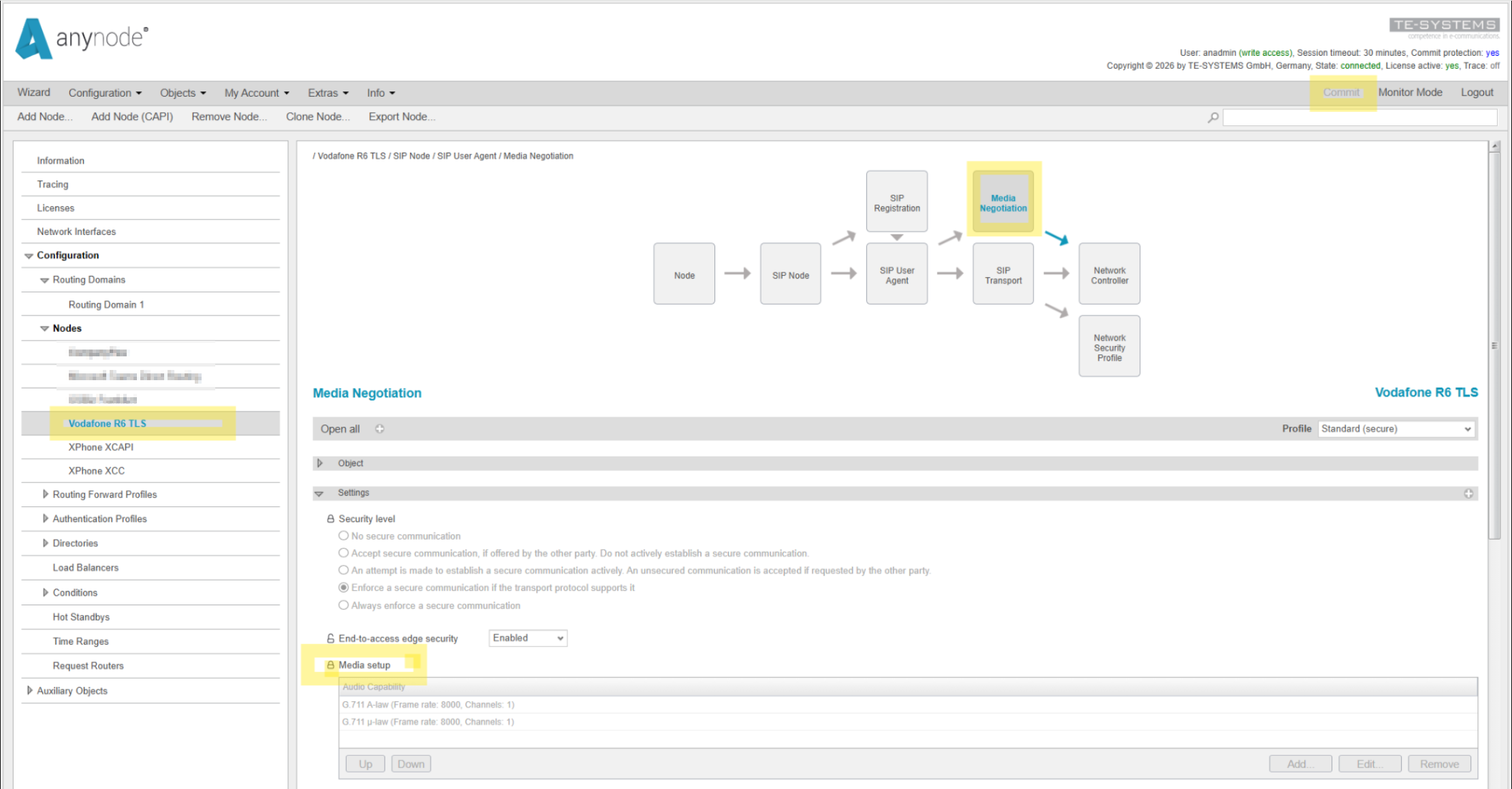

Next, navigate to the provider node, go to the Media Negotiation section, and open the Settings. Make sure that the default settings are selected in Media Setup (G711 A-law and G711 μ-law).
| Note: Closing the lock icon |
Save the settings by clicking Commit.

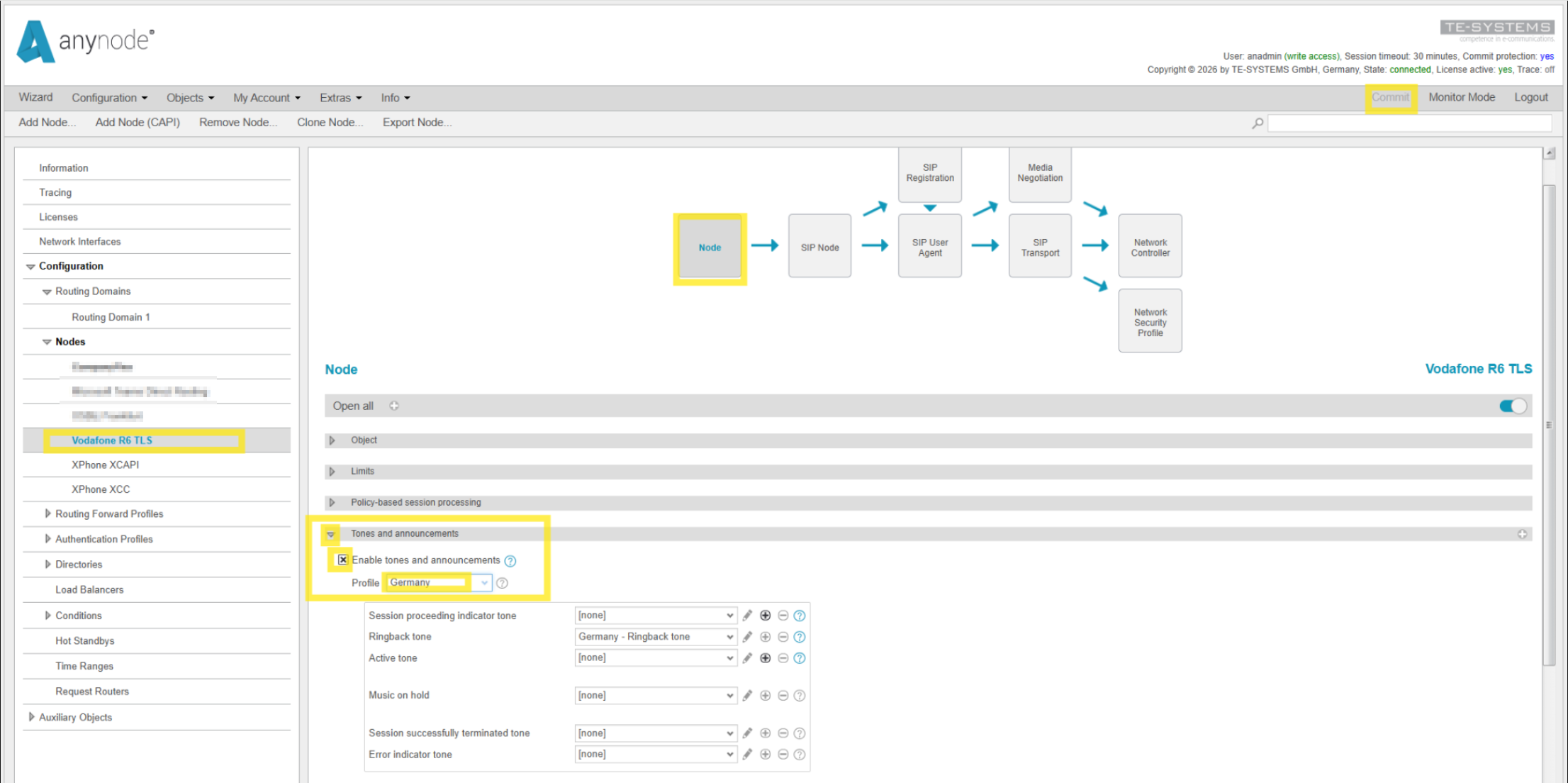

In the same node (the one for the provider), go to the Node section and open Tones and announcements. Enable the tones by checking the “Enable tones and announcements” box and selecting the profile.
Save the settings by clicking Commit.

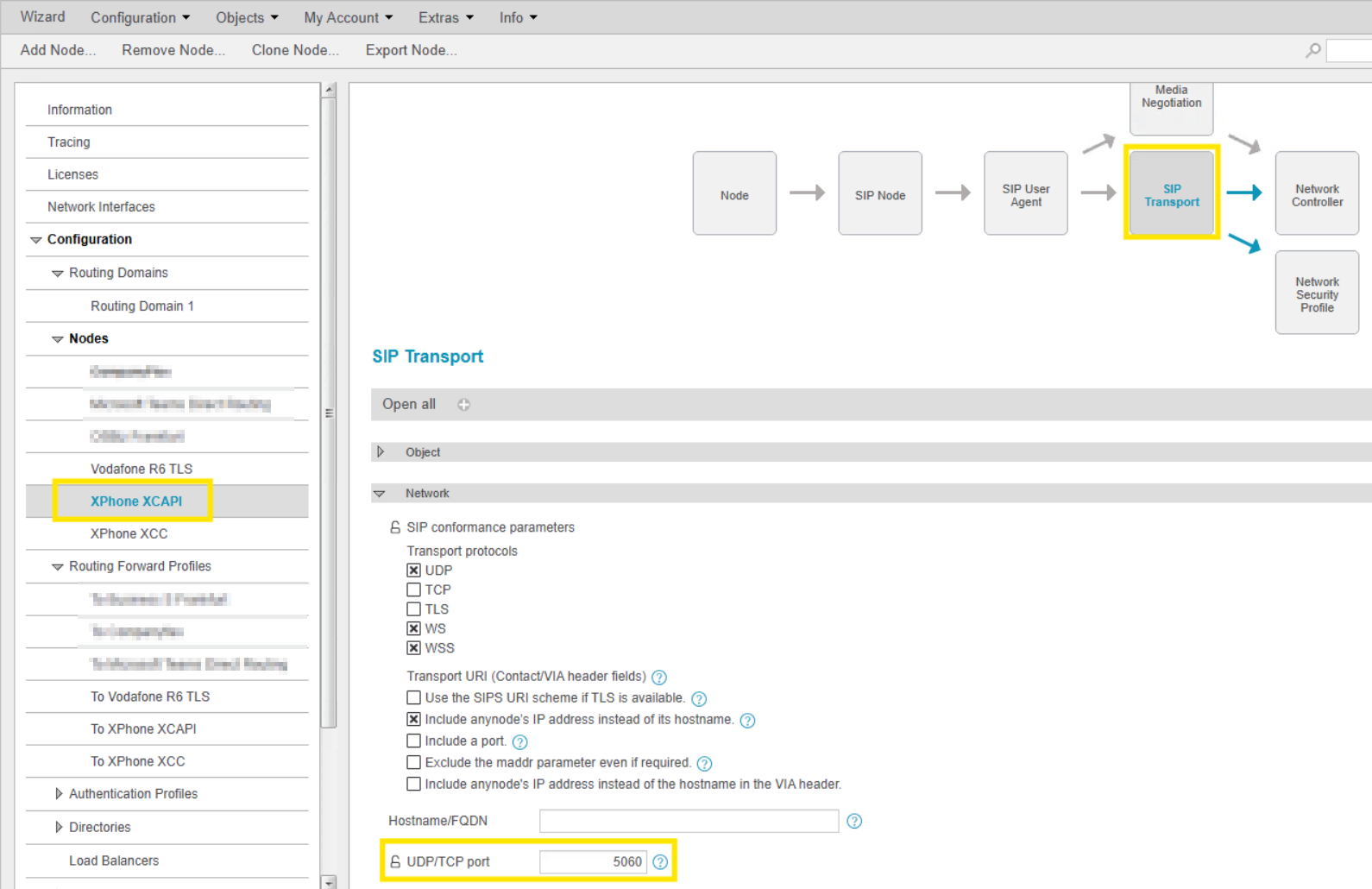

Now navigate to the XCAPI node and go to the SIP Transport section. Under Network, set the UDP/TCP port to 5060.
| Important! Port 5060 must be used here. Other ports have not worked in previous tests. |
Save the settings by clicking Commit.
XCAPI settings:
Open the XCAPI configuration and navigate to Anynode controller > SIP. Open the Protocol tab and check the following boxes:
- Send SDP in Progress messages
- Send SDP in Ringing messages

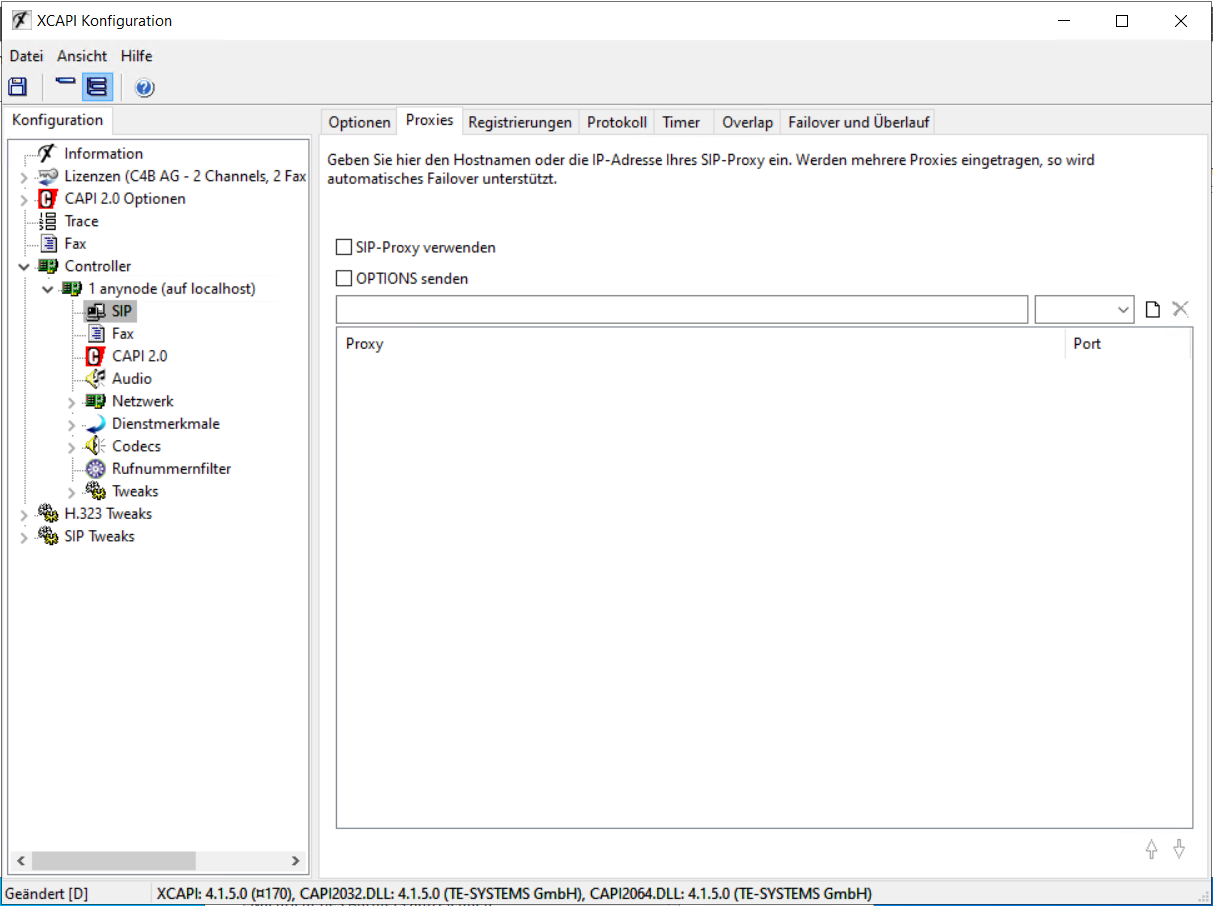

Go to the Proxies tab and remove any existing entries or uncheck any selected boxes.
Then go to the CAPI 2.0 Options and select the Advanced tab. Check the box next to Enable Immediate “Early B3”.
Save the settings and restart the XCAPI services.
XPhone settings:
Under UM > Voicemail > General, set the call forwarding method to Call Deflection, then click Save.
